GNS – 5851 AIS module

79,90




Price breaks

 21 – 99        69,90 EUR

>100 pcs. please contact us for a project quote



SKU: 4037735105904-1 Category:

Delivery time: Lieferzeit ca. 3 - 5 Tage

View basket

Description

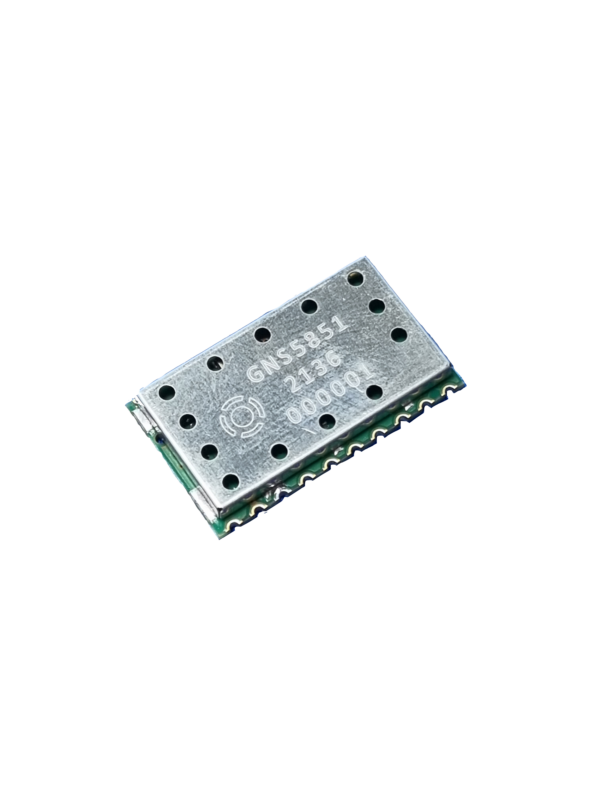

GNS-Electronics introduces the new GNS 5851 AIS receiver module for the maritime market.
The GNS 5851 is a highly sensitive single-channel receiver which can either be used stand-alone as a channel hopping receiver or as a chained pair to form a complete two channel solution depending on customer needs.
The module integrates a sensitive RF frontend, signal processing and a data decoder with standard NMEA AIS output via a UART that can be easily connected to a host processor. A secondary UART is provided for module chaining.

Features

  • Standard AIS NMEA output
  • Sensitivity -117 dBm
  • Selectable Channel A, B or A & B (hopping)
  • Small outline 26x15x3.3mm
  • Ultra-Low power consumption : 20 mA
  • Frame decode indicator output
  • Easy to mount stamp hole PCB design
  • Evaluation Board with USB bridge available



For volume pricing contact: sales@gns-electronics.com



Additional information

Weight 0.02 g
Dimensions 15 × 2.2 × 0.7 mm

Product data sheet

Datasheet GNS5851V0.9
