NTRIP-M incl. antenna


SKU: 4037735106796 Categories: ,

CHX603A helical GNSS multiband antenna

Lightweight helical GNSS tripleband antenna

GPS             L1/L2/L5
BDS             B1/B2/B3
GALILEO     E1/E5a/E5b

194 in stock (can be backordered)

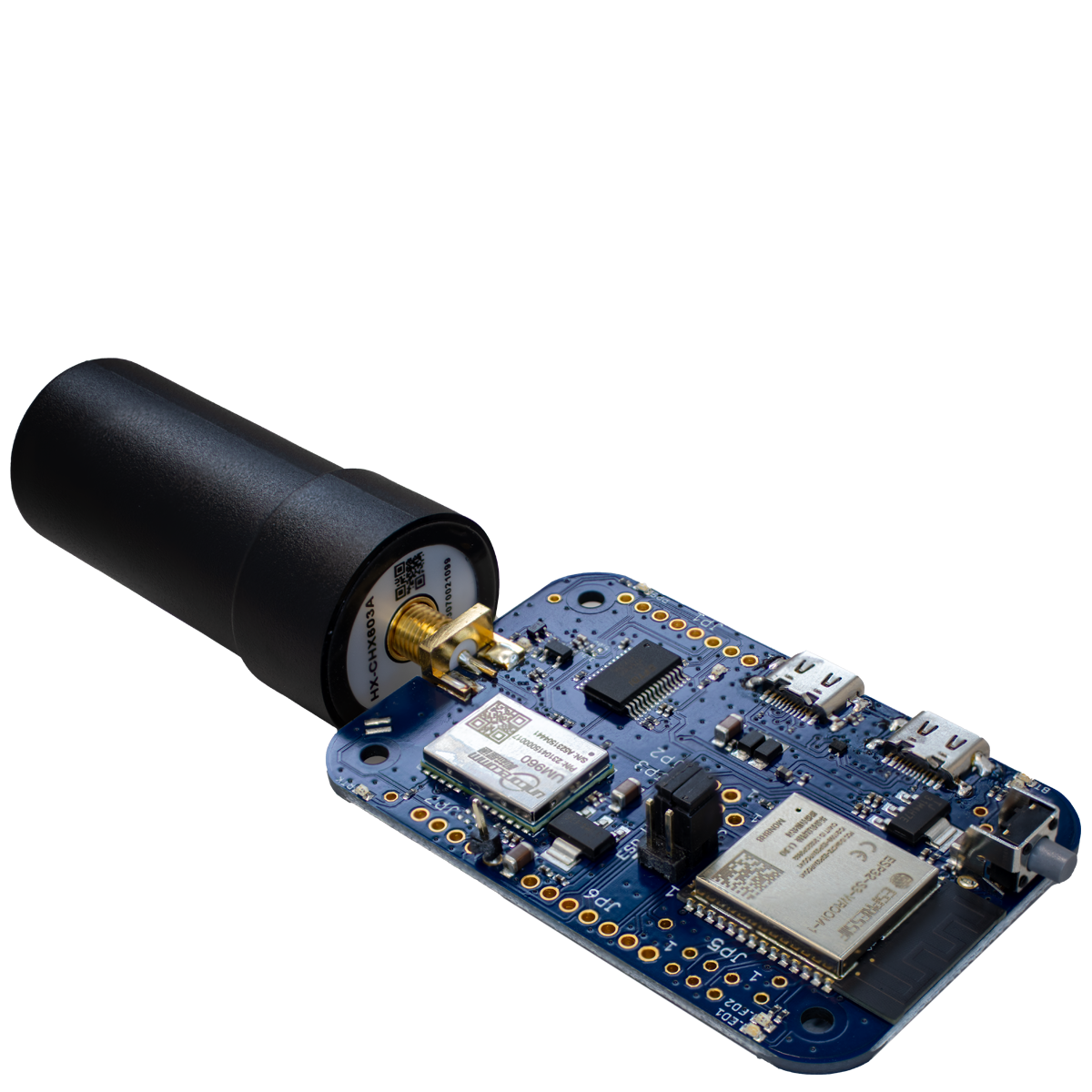

NTRIP-M Rover GNSS/RTK receiver

Available on back-order

Available on back-order


NTRIP-M is a high precision rover platform.

1408 channel multi frequency and multiband receiver.

High end performance with RTK (RMS)

Horizontal: 0.8cm + 1ppm

Vertical: 1.5cm + 1ppm


● Supports GPSL1C/A/L2P/L5+BDS B11/B2/B31/B1C/B2a+GLONASS G1/G2+Galileo E1/E5b/E5a+QZSSL1/L2/L5 + SBAS
● All-constellation multi-frequency RTK engine and advanced RTK technology
● Independent tracking of satellite frequencies and 60dB narrowband anti-jamming technology
On board we have also the well know ESP32S which fits perfect and can be easily programmed by themselves if needed.
All Pin´s are available so it is easy to control everything and to create an application or product.
There are two USB 3.0 ports on board for power supply in and GNSS data out

Additional information

Weight 37,2 g
Dimensions 134,4 × 4,6 × 27,4 mm

CHX603A helical GNSS multiband antenna

Weight 17,5 g

NTRIP-M Rover GNSS/RTK receiver

Weight 19 g
