NTRIP-X basestation bundle – HS Code 85272900

739,90

This item will be released May 3, 2024.

SKU: 4037735106703 Categories: ,

Harxon TNC-SMA Kabel 5m

173 in stock (can be backordered)

Available on back-order

Description

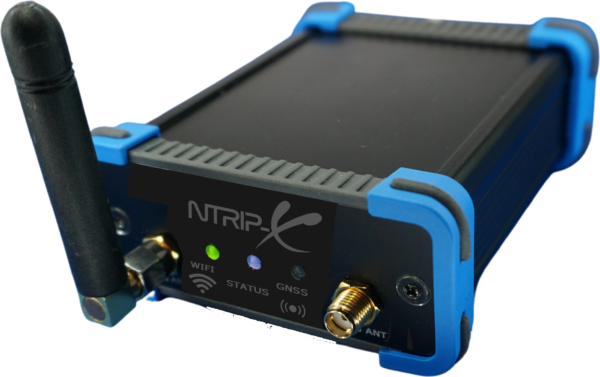

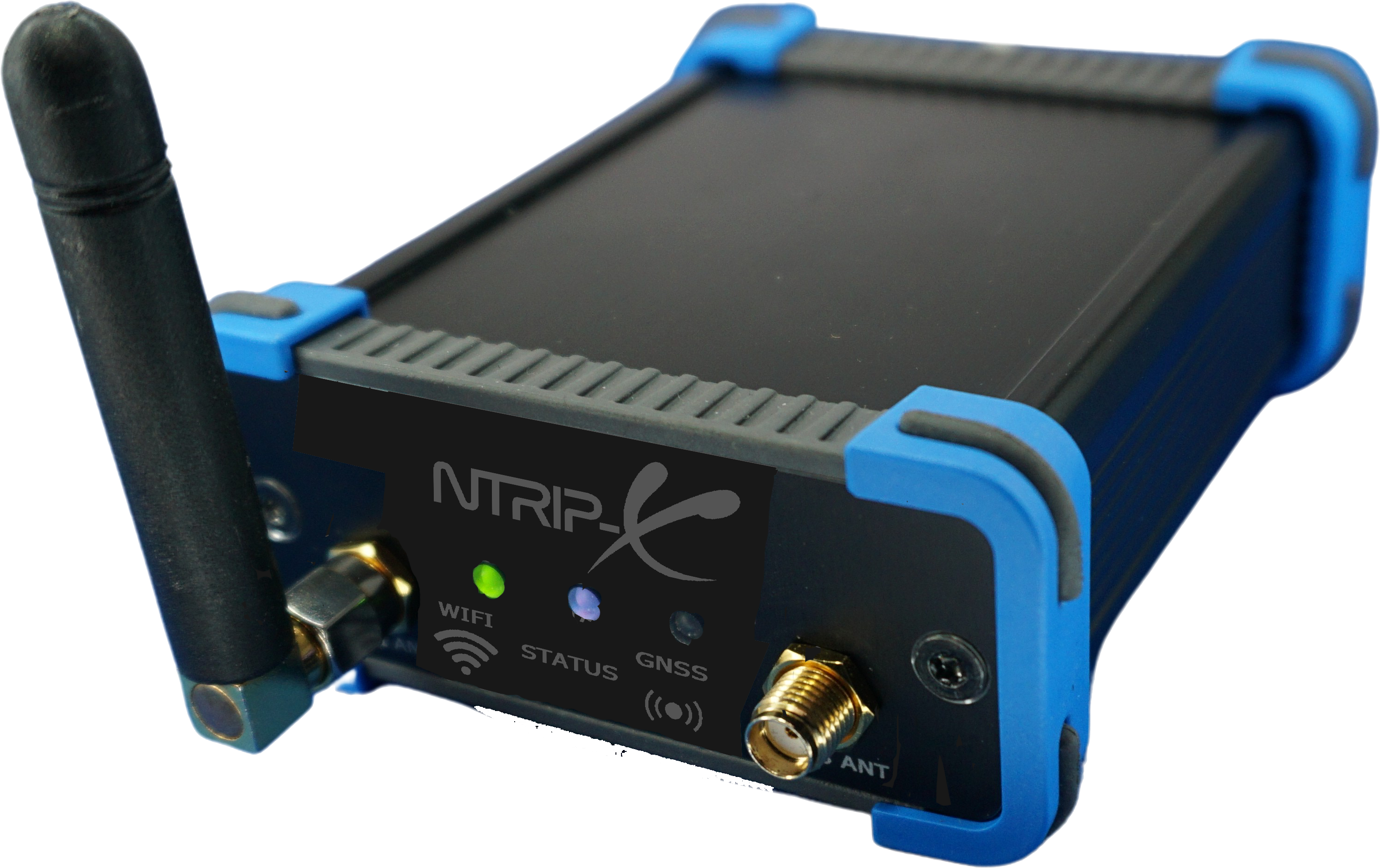

State of the art triple-band RTK base station NTRIP-X for high precision application

The high precision RTK plug&play base station NTRIP-X® enables sub-centimeter level location accuracy with its multi-band, multi-constellation and high precision RTK (real-time kinematic) capabilities. The solution is a perfect choice for demanding high-precision navigation and positioning use-cases like precision agriculture, unmanned aerial vehicles (UAV) and robotic lawn mowers.

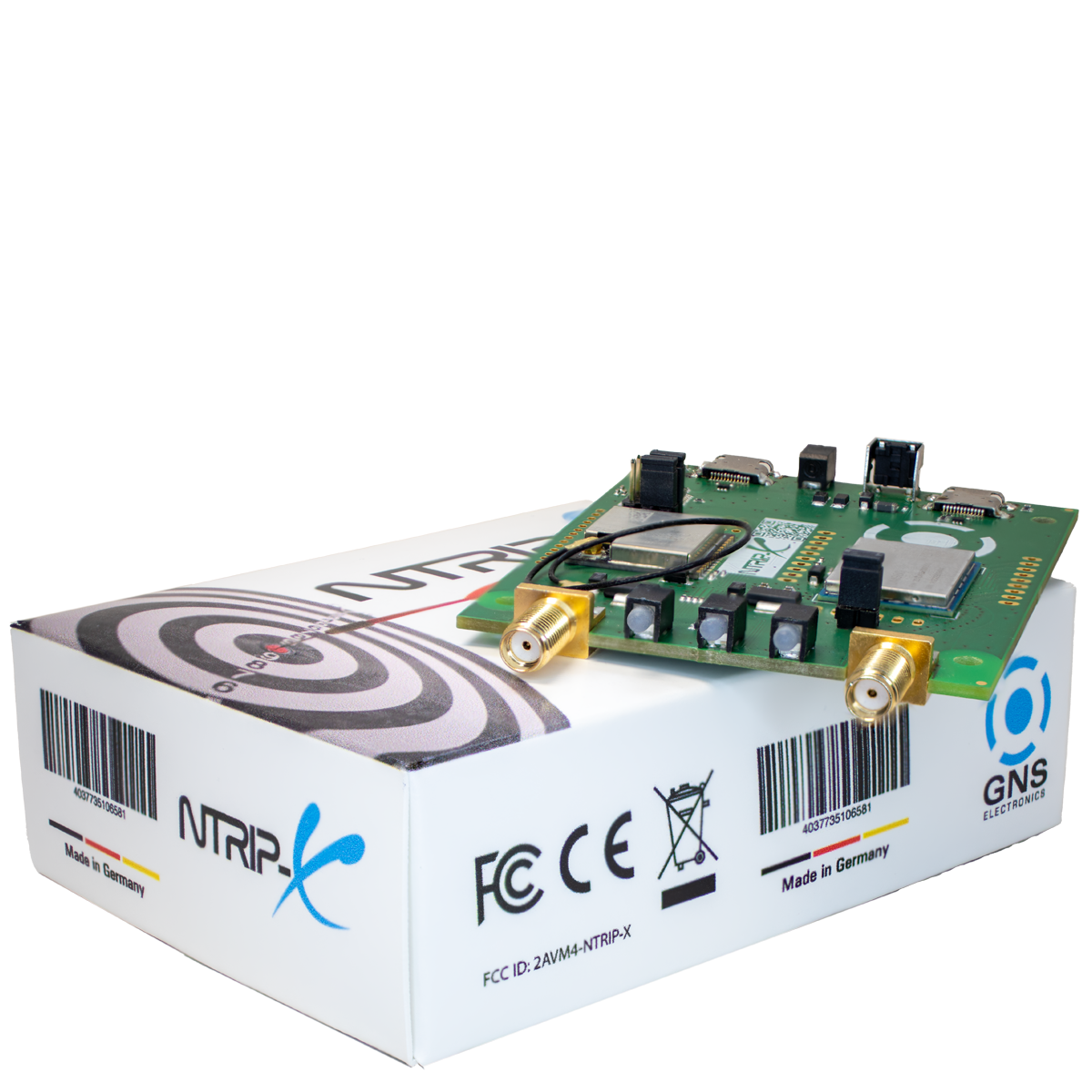

NTRIP-X® is compatible with RTK rovers supporting RTCM or NTRIP. The included accessories (antenna, cabling) provide an instant set-up and operation of the NTRIP-X® base station.

Additionally NTRIP-X® is plug&play compatible with community-powered GNSS reference station networks like onocoy.

Certification: CE, FCC

Technical Data:

NTRIP-X can simultaneously track

BDS B1/B1C/B2/B2a/B2b/B3

GPS L1/L2/L5

GLONASS G1/G2/G3

Galileo E1/E5a/E5b/E6

QZSS L1/L2/L5

NAVIC L5

NTRIP-X supports 1408 super channels and has built in an adaptive anti-jamming technology.

The positioning accuracy for RTK (RMS) is Horizontal: 0.8 cm + 1ppm and Vertical 1.5 cm + 1ppm





Additional information

Weight 1250 g
Dimensions 200 × 200 × 200 mm
Variants

DevKIT, NTRIP-X, NTRIP-X bundle

Harxon TNC-SMA Kabel 5m

Weight 218,7 g

Quick Guide

Quick Guide
