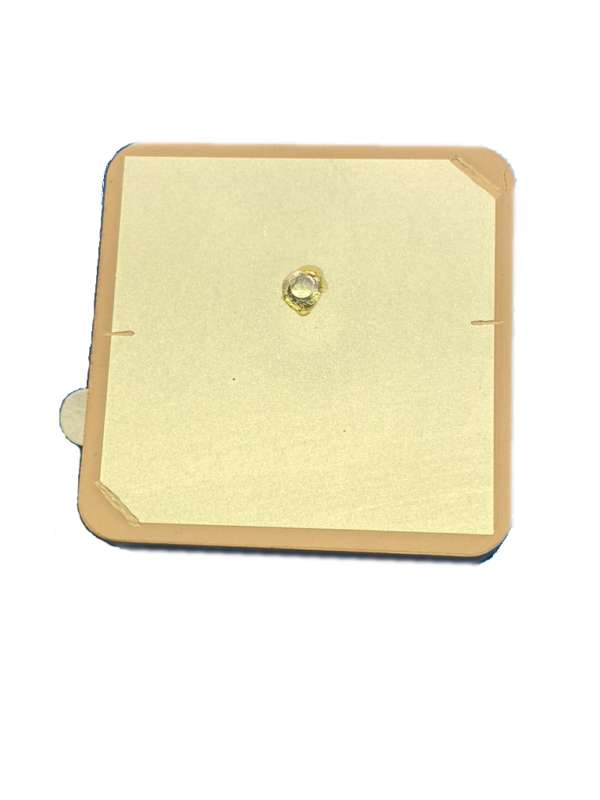

1090 Mhz patch antenna,

World wide first ceramic patch for consumer ADS-B application. (40mmx40mm)

The antenna should be used where conventional antenna designs fail. For example, near transmitters or house walls or where rod antennas are forbidden. The antenna is almost polarization independent and can be used both horizontally and vertically.
The small design also allows installation in housings. Here we ask for consultation with our technical department, as we may have to adapt the antenna tuning to the housing.

Thanks to the exact tuning and very small bandwidth there is no need for additional SAW filters.

There is a need of a 70mmx70mm ground plane.

The antenna pricing is very attractive for high volume designs please ask for your quote

Additional information

Weight 36,3 g
Dimensions 40 × 40 × 7,2 mm
